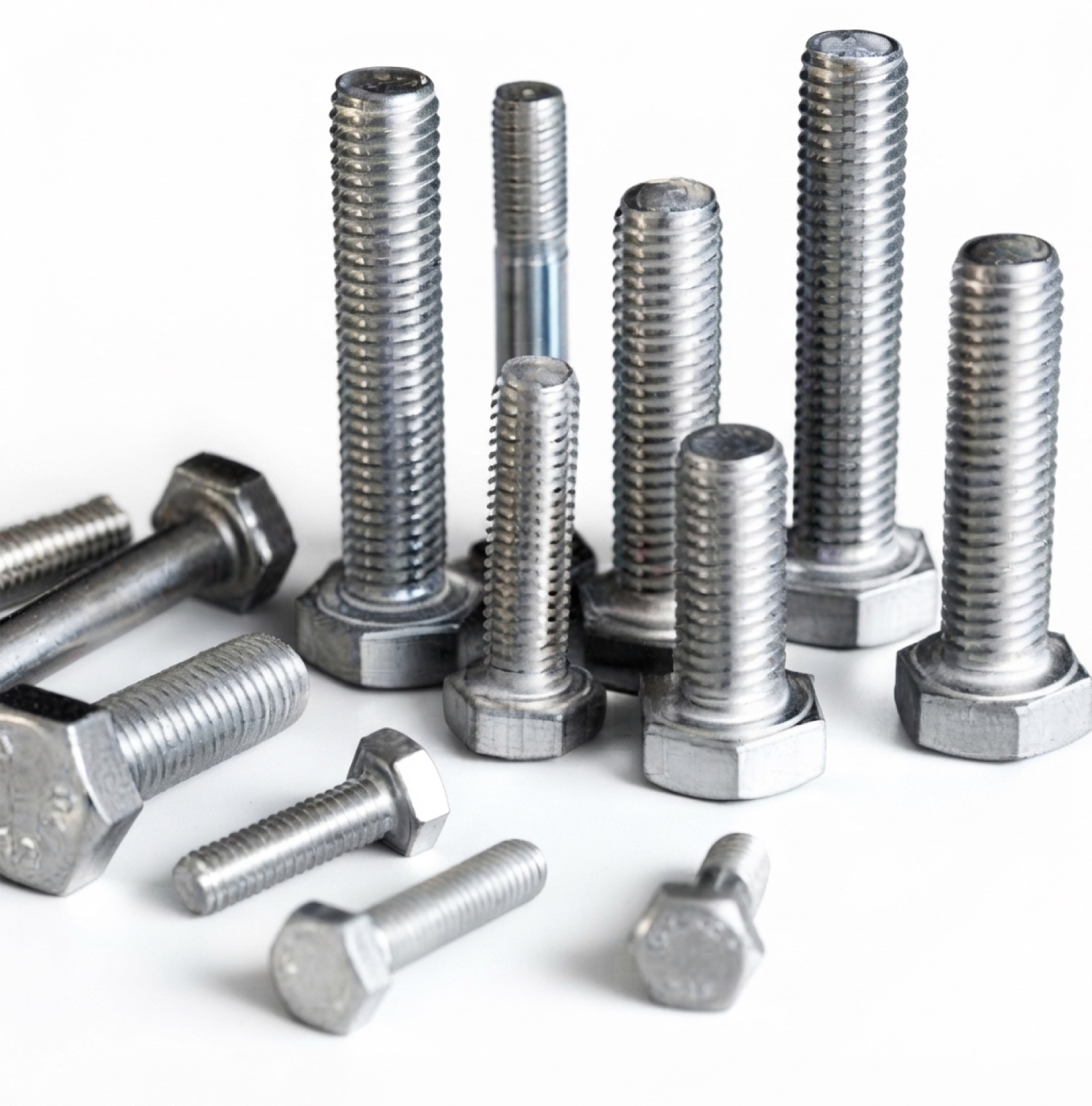

Hex Bolt
Hex Bolt to IS 1364, ISO 4014 and DIN 931. Grades shown include 4.6, 8.8, 10.9 and 12.9 with MS, HT, SS304 and SS316 material options. Specify size and quantity for UK project requirements.
Hex Bolt Supplier UK
United Exim Ltd supplies Hex Bolts for industrial, construction, fabrication and maintenance requirements across the UK. The range shown on this page covers IS 1364, ISO 4014 and DIN 931 specifications with multiple grades and material options for specification-based procurement.
Specifications
| Product | Hex Bolt |
|---|---|
| Standard | IS 1364, ISO 4014, DIN 931 |
| Grades | 4.6, 8.8, 10.9, 12.9 |
| Material / Finish | MS, HT, SS304, SS316 |
| Size Range | M3 to M64 (and as per project requirement) |
| Thread Type | MM, BSW, BSF, UNC, UNF, Fine Pitch |
| Quotation Details | Standard, grade, diameter, thread, length, material / finish and quantity |
Material Options Shown
Grades Shown
Applications
- Structural steel
- Machinery
- General assembly
M10 Bolt Enquiries
M10 falls within the size range shown on this page. For an M10 hex bolt quotation, specify the required standard, grade, thread pitch, overall length, material or finish and quantity. Where a matching nut or washer is required, include those details separately in the enquiry.
UNC Bolt Enquiries
UNC is one of the thread types listed for this Hex Bolt range. For UNC enquiries, provide the nominal inch diameter, threads per inch (TPI), bolt length, required grade or material, finish and quantity. This avoids treating metric and Unified thread requirements as interchangeable.
Procurement Details
For specification-based procurement, define the required standard, grade, diameter, thread type, length, material or finish and quantity. Browse the Bolts & Screws category for related bolt and screw products.
